DESCRIPTION

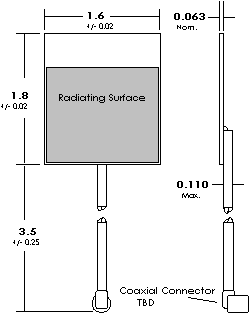

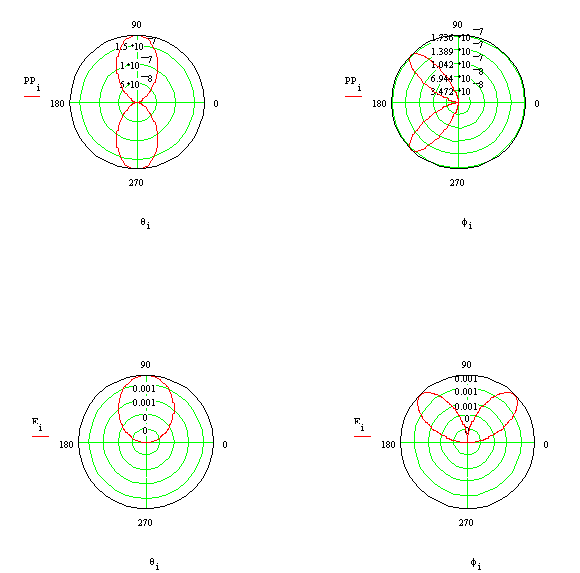

The SPA 001 is a high performance shorted patch antenna intended for applications in the 902-928 MHz Spread Spectrum band. Fully metalized ground plane on the backside permits attachment to a variety of surfaces without significant effect on the resonant frequency or the directional pattern.

Each assembly is 100% tested for conformance to the MIN./MAX. specification limits at 25°C.

FEATURES

Low VSWR, 1.2:1 Typical

Compact, rugged packaging

Connectorized for ease of installation.

ELECTRICAL SPECIFICATIONS, TA = 25°C
Parameter
Test Condition
Units
Min.
Typical
Max.
Center Frequency F0 (see Note 1) Resonance indicated by minimum VSWR
MHz
902
915
928
Center frequency accuracy Reference specified F0
MHz
-2
0
+2
VSWRAt F0, reference 50 ohms
1.0:1
1.2:1
1.4:1
Bandwidth% of F0 over which
VSWR 2.0:1
1.5
1.7

Note 1: Center Frequency to be specified at time of order. See "Ordering Information"

ABSOLUTE MAXIMUM RATINGS

ParameterAbsolute Maximum(1)
RF Power10 Watts
DC Current 500 mA(2)
Temperature-60°C to +100°C.
Humidity95%, Non - Condensing

(1) Operation of this device beyond any of these Absolute Maximum limits may cause permanent damage.

(2) The antenna is shunt fed. Connection to active antenna circuits with DC voltages must be through a DC block.

Ordering Information:

Basic Part Number ---- SPA001

Dash Number (MHz)
within 902-928
MHz Band

Examples:

912.4 MHz ---- 915 MHz Fo

923.8 MHz ---- 924 MHz Fo
